FPV Racing Drone is a drone designed for high-speed competition. It combines extreme speed, precise control and first-person perspective (FPV) flight experience and is known as the "F1 in the sky."
1. Core Configuration of Racing Drones
Hardware Design

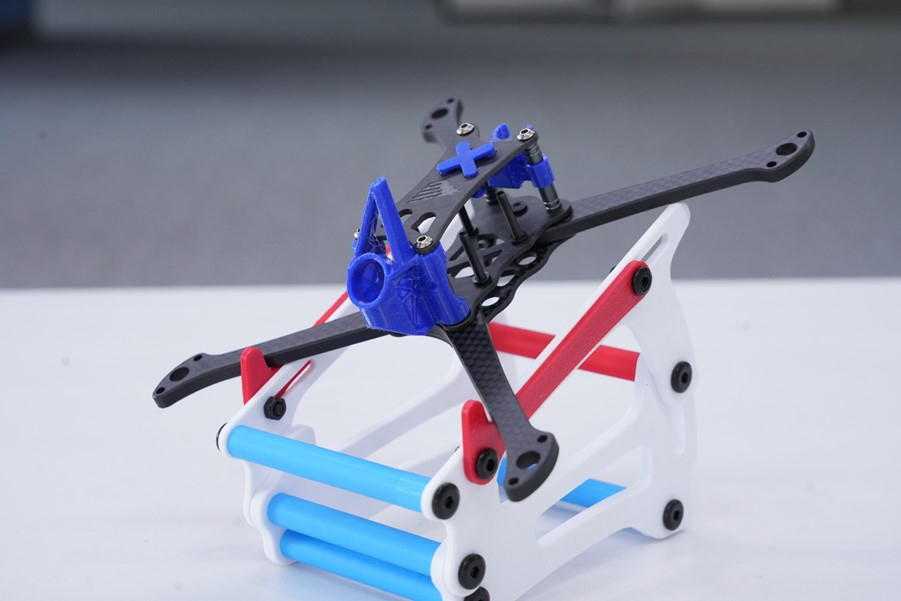

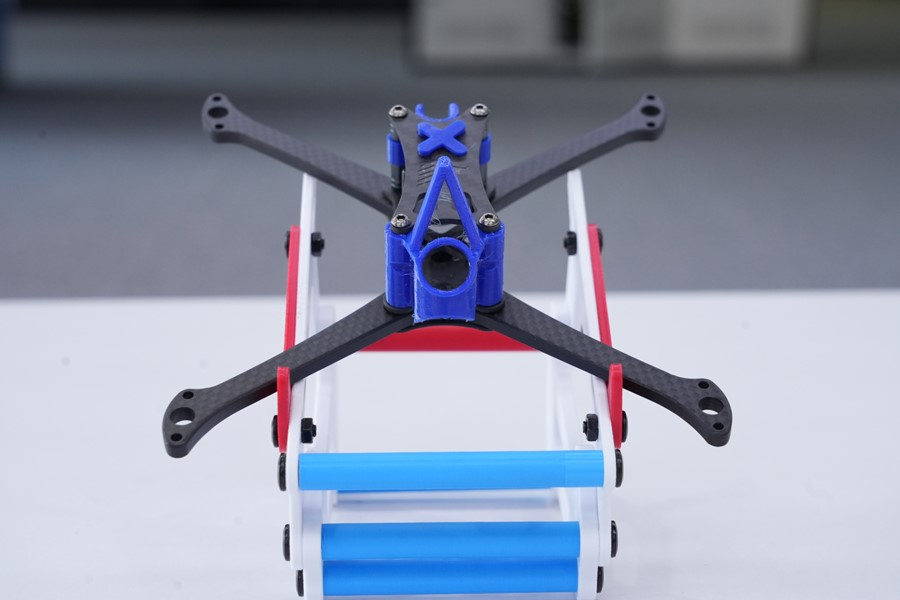

Frame: Mostly made of carbon fiber, lightweight and strong, with a typical wheelbase of 5 inches (approximately 250mm).
Power System: Brushless motor paired with a high-discharge-rate battery (6S), achieving a top speed of 160 km/h.
Flight Control and Image Transmission: Dedicated racing tower and low-latency image transmission ensure real-time control response.
2. Control Method: Fly in first-person perspective using FPV goggles, and use an ELRS receiver for high-refresh-rate control.
3. Specifications:
Body Dimensions: 175mm x 173mm
Wheelbase: 208mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm Thickness: 5mm
Aluminum Column Dimensions: m3 x 5 x 25mm
Flight Controller Mounting Holes: 20mm x 20mm
Motor Mounting Space: 16mm x 16mm
Lens Mounting Hole: 14mm
Recommended Propeller Blades: 5-inch
Weight: 70g
FPV Racing Drone is a drone designed for high-speed competition. It combines extreme speed, precise control and first-person perspective (FPV) flight experience and is known as the "F1 in the sky."
詳細
We have 7-inch, 10-inch and 13-inch FPV drones accessories, and can be customized according to user needs.Long-flight, heavy-load, high-speed, and high-definition camera first-person perspective.
詳細
Customized FPV drone parts, spare parts, sizes can be customized.
